Oil and gas equipment

We offer steam boilers and transportable steam generating units for the oil and gas industry, where saturated vapor with working pressure till 0.8 MPa is necessary. Our boilers are oil and black-oil-burning and have an efficiency 1; 2; 3 t/h.

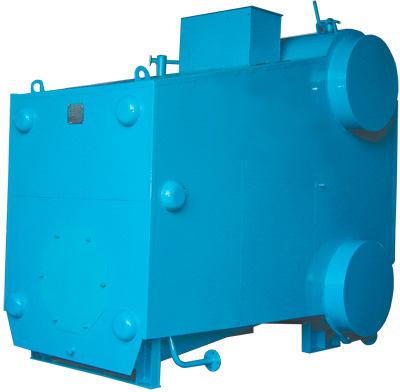

Steam boilers on the basis of a boiler E-1.0-0.9 are oil-burning

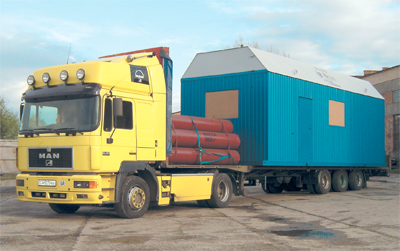

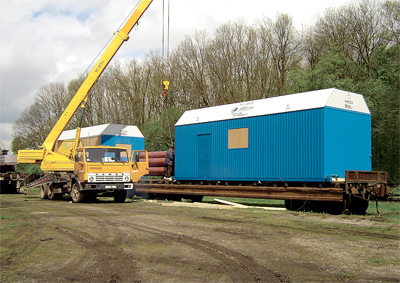

Transportable steam generating units

Transportable steam generating units

Transportable steam generating units on the basis of the oil-burning boiler

Transportable steam generating units on the basis of the oil-burning boiler

Water-treatment machinery

Water-treatment machinery

1. The main characteristics.

The steam generating units ТКУ-0,7М(Э) are purposed for saturated vapor with working pressure 8kf/sm2 producing.

The steam generating unit is a technological equipment complex of a dry construction, installed in the box and designed for the service at the esplanades.

After assembling the steam generating unit is the one-piece block, consisting of the following elements:

а) a metal ware (box);

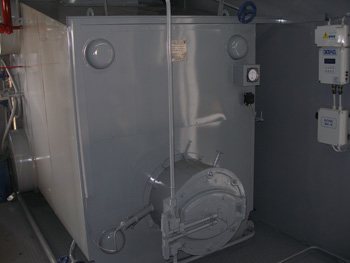

b) a steam boiler E-1.0-0.9M-3(Э) with a furnace – 1 p.;
c) a charge circuit with pumps “Lowara” and a water-treatment machinery;
d) internal fuel pipes;
e) heating and ventilation systems;
f) an electrical equipment and a heating system;
g) an automation and a control equipment.

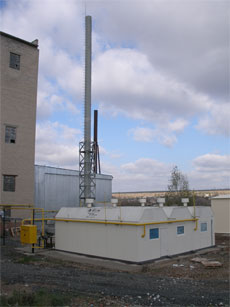

The steam generating unit is completed with a chimney (diameter is 325 mm, height is 18.4 m).
In the steam generating unit an account of the electric energy and water inputs is provided.

2. Architectural-construction solutions.

The metal ware is a placement from metal panels with an internal thermal insulation.

The module consists of a heat-insulated frame with 2 butt and lengthway walls (thickness is 100 mm), made of a heat insulation material "Rockwool", and a heat-insulated roof.

At the sidewall of the modules there are outward opening doors. At the butt and lengthway walls there are windows.

The chimney is metal with a tension bracing, positioned in the box.
The steam generating unit has a system GOST R certification and a permission of the Federal Ecology, Technology and Nuclear Service.

Special base is not required, because its construction has the flat foundation and an equal distributed load.

The steam generating units and the supplementary equipment distinguish a high mobility, a degree of automation. A price-quality relationship makes these units competitive at the boiler equipment market.

With its characteristics the boiler equipment does not give way, but outgoes the equipment of such world's leaders-manufacturers as "Vitherma", "Alstrom Thermoflow".

According to the power, the transportable steam generating units are supplied as the ready for operation ones or completed multicomponent assemblies.

The assembly does not require any operations, except connecting and pipeline filling, the chimney placing and a power cable connection.

транспортабельная котельная установкатранспортабельная котельная установка транспортабельная котельная установка

Transportable boiler plantTransportable boiler plant

The transportable steam generating units are urgent for oil-producing complexes and different objects construction.
